• TCP濾心

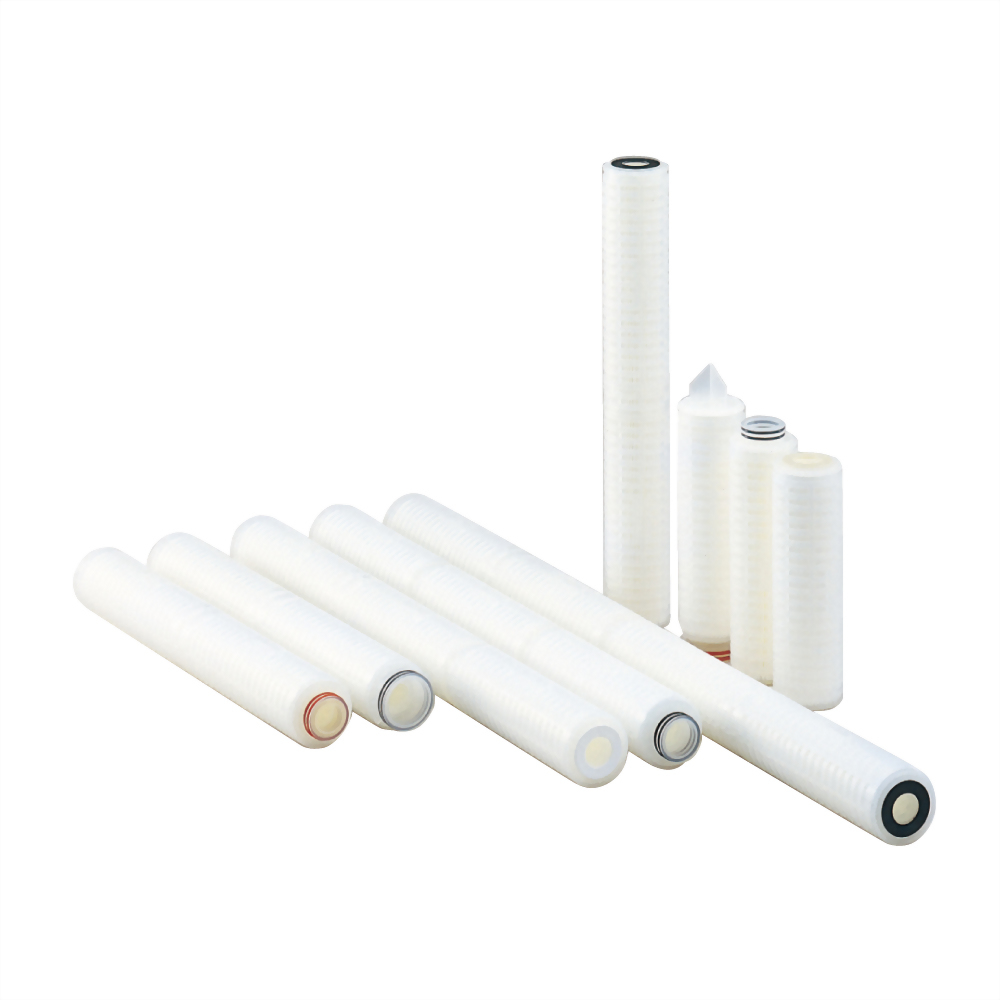

TCP濾心

型號:TCP
中文名稱:TCP濾心
英文名稱:Polypropylene(TCP)
廠牌:ADVANTEC

以下請選擇您要詢問的產品規格:

*粒徑代碼:
*長度:


Polypropylene (TCP)
• Multiple layers of nonwoven polypropylene maximize filtration efficiency
• Maximal throughput volumes and retention ratings
• Thermally bonded to minimize fiber releasing
• Minimize extractables
• Supported both upstream and downstream (TCP-HX, FX only)
APPLICATIONS
• Filter process waters for the food, cosmetic and pharmaceutical industries

SPECIFICATIONS

TCP-LX  TCP-JX  TCP-HX   TCP-FX
Filtration Area per Single Length 3,300 cm2   4,500 cm2   4,200 cm2   5,100 cm2
Max. Differential Pressure (25°C) 0.49 MPa (71 psi)
Max. Operating Temperature 80°C (176°F)


Materials:

End Cap Polypropylene
Support Media Polypropylene
Membrane Polypropylene
Core Tube Polypropylene
Outer Sleeve Polypropylene
