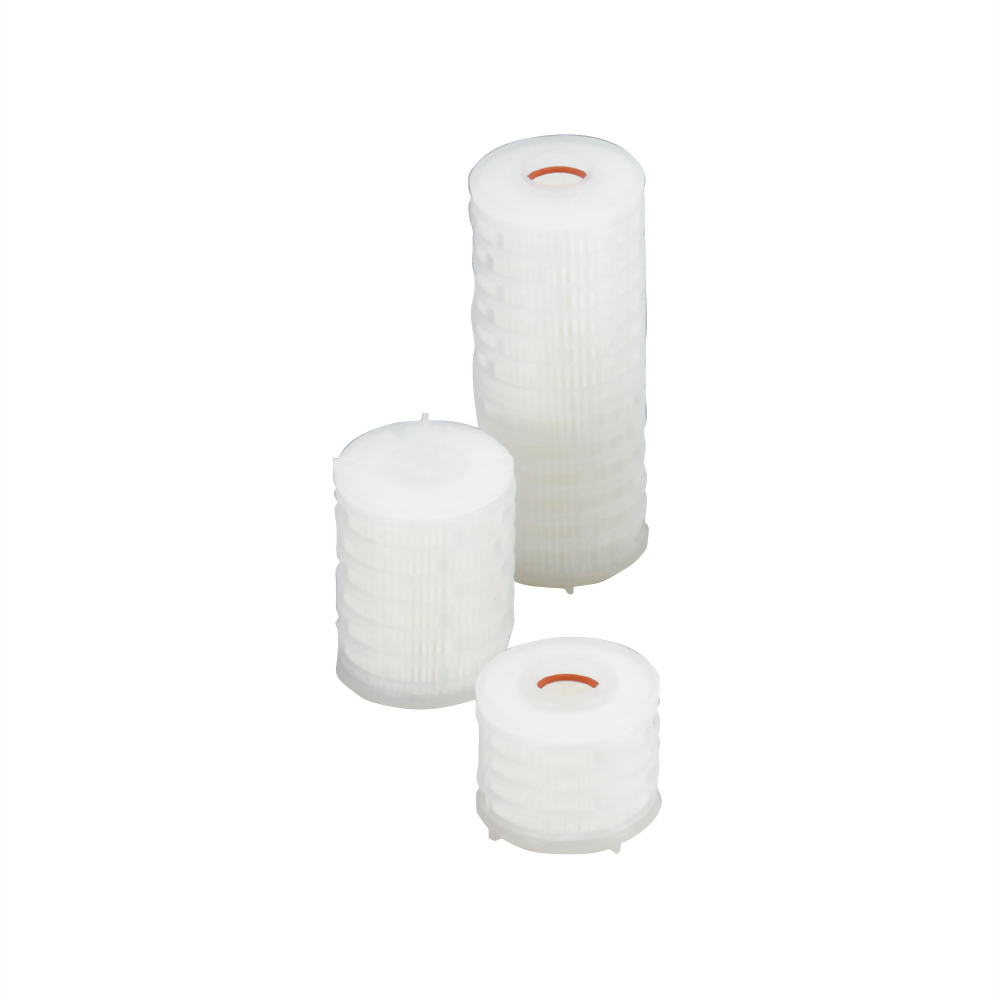

聚四氟乙烯PTFE

型號 : CCF-CCFH / MCF
型號 :CCF-CCFH / MCF-MCFH
中文名稱:聚四氟乙烯PTFE
英文名稱: PTFE Capsule Filters – Hydrophobic (CCF) and Hydrophilic (CCFH)
廠牌: ADVNATEC

以下請選擇您要詢問的產品規格:

*濾心款式:
*孔徑:

用途:
* CCF / MCF     PTFE
酸鹼性溶液,有機溶劑,光阻劑,發酵用空氣及化工制程之氣體過濾

PTFE Capsule Filters – Hydrophobic (CCF) and Hydrophilic (CCFH)
• Compatible: solvent and pH-resistant
• Hydrophobic:
– Supported membrane except CCF-A10 and CCF-005
– Single layer except CCF-A10 and CCF-005 which has double layer
– 5 pore sizes
– Can be sterilized by autoclaving (121ºC, 30 min) or treatment with ethylene oxide (EtO).
• Hydrophilic:
– Polyester membrane support
– Single layer
– 0.2 μm pore size
Note: Autoclaving or allowing membrane to dry will render it hydrophobic.
APPLICATIONS
• Use serially as prefilter and final filter
• Corrosive fluids and gases, photoresists, and both alkalis and acids
• Hydrophobic:
– Solvent filtration
• Hydrophilic:
– Solvents with higher surface tension
– Heterogeneous fluid mixtures
• Cannot be used for gas filtration
SPECIFICATIONS

Maximum Inlet Pressure  0.39 MPa (57 psi)
Maximum Operating Temperature  60°C (140°F)

  CCF-005 CCF-A10 CCF-010 CCF-020 CCF-020 CCF-100 CCFH-020
  Hydrophobic Hydrophilic
Layers Double Double Single Single Single Single Single
Pore Size (μm) 0.05     0.10 0.10  0.20 0.50 1.0 0.20
BBubble Point (IPA) MPa (psi) ≧0.16 (23) ≧0.15 (22)  ≧0.13 (20)  ≧0.09 (13)  ≧0.05 (7)  ≧0.03 (4)   -
LRV / Organism  ≧7 B. diminuta  ≧7 S. marcescens ≧7 S. marcescens ≧7 S. marcescens ≧7 S. marcescens ≧7 S. marcescens ≧7 S. marcescens
Length Code Length (mm)*   Filtration Area (cm2)
C 102 900    900  570  570  570 570 900
D 129 1,800  1,800 1,150  1,150  1,150  1,150  1,800
E 201 3,600 3,600 2,300 2,300 2,300 2,300 3,600

*Length given is for capsule with end fixture H.

*1. When ordering sterile units, specify “S” in the last position of the catalog number.
*2. When ordering length code “C”, end fixture code “D” is not available.
